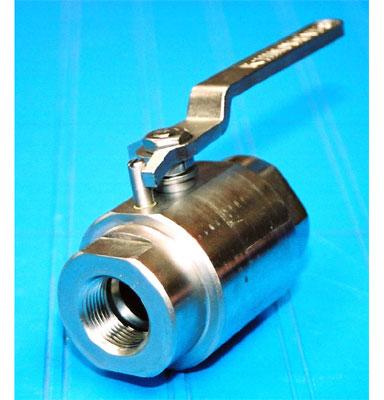

Rhino Series S6

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rhino Series S6
  • Dimensions (See PDF)
  • Exploded View (See PDF)

Rhino Series S6

Email to a Friend

Availability: In stock

Add Items to Cart

Product Description

The most robust of all Rhino valves. Manufactured from solid bar stock from a  variety of materials, the Series S6 contains seals for extreme service conditions. ANSI Class 2500 rated, the S6 can also be automated.

  • Two-piece design, full port

  • Massive heavy duty body turned from solid bar stock

  • Threaded NPT, BS, or SW.

  • Wall thickness: ANSI 2500

  • Maximum operating pressure of 6000 psi

  • Seats: Delrin with viton

  • Body seal: viton

  • Stem seal: Delrin or Multifil

  • SS 17.4 PH, stem and ball

The Series S6 is a robust valve of heavy duty design ideal for high pressure service. Full port from 1/2" to 2", the S6 can be manufactured from solid A105 bar stock of carbon steel or 316 stainless steel. Two-piece body design with a wall thickness meeting ANSI 2500. This valve has a maximum operating pressure of 6000 psi with heavy duty seals made of a variety of materials. Locking device on handle is optional.

For more information please see the Documentation below.

Additional Information

Documentation Rhino_Series_S6000.pdf (674 KB)
